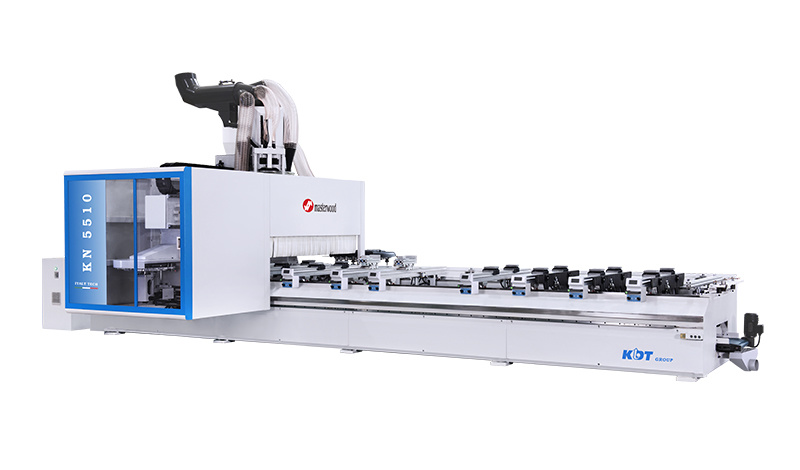

KN-5510 CNC Machining Centre

Versatile solution for all types of custom manufacturing

Product category: CNC Machining Centres, Gerendás CNC

E-mail:

Key Features

Suitable for machining a wide range of solid wood components and products, including concealed fittings, keyhole slots, lighting profiles, door closers and more.

Equipped with a high-performance water-cooled electrospindle with a large swivel range, enabling highly efficient routing operations.

Schmalz beam table with quickly adjustable vacuum pods.

Integrated graphics functions with an open software interface, fully compatible with CAM programming software.

Technical parameter

Modell: KN-5510

Working area size X/Y/Z (mm)

3250*1500*200

Machine dimensions (L)(W)(H)(mm)

5930 H × 4365 W × 3100 H

Total power (kW)

28,25

Max. movement speed (m/min) X-axis

Max. movement speed (m/min) Y-axis

Max. traverse speed (m/min) Z1 axis (5-axis heads)

Max. movement speed (m/min) Z2 axis (drill head)

Max. rotational speed (m/min)

40°/s

Vacuum pump

1*244 m3/h

Drill bit

12V+8H+1S

Main spindle

HSD 12kW HSK F63

Tool magazine

22-station turret + 5-station linear tool magazine
